MPT - W

PINCERS FOR TREE TRUNKS AND DIFFERENT MATERIALS

Scarica la Brochure

DOWNLOAD BROCHURE

Data and weight are indicative: the company reserve the right to make any improvements and changes required for good operation, without giving advance notice.

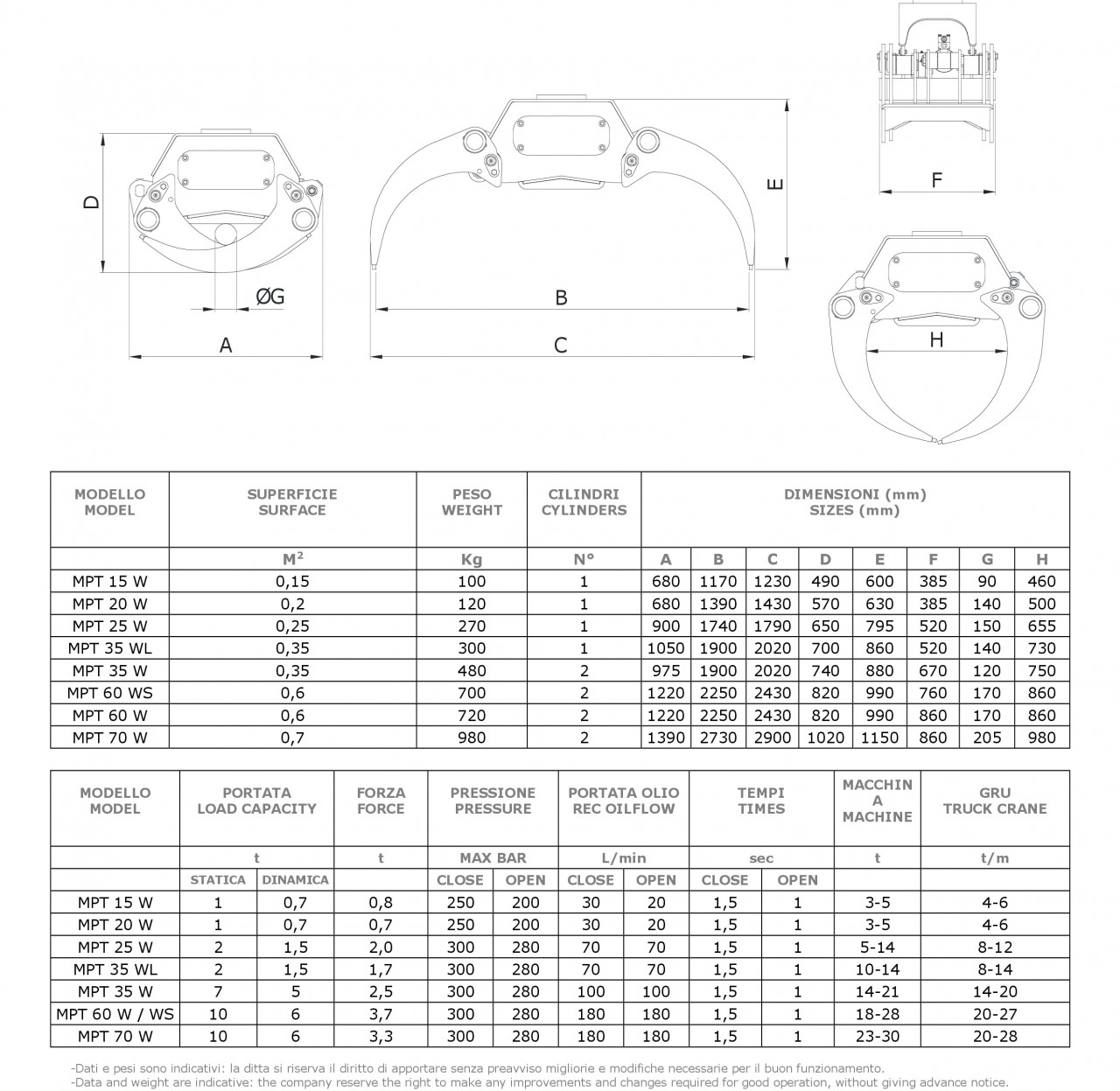

MODEL SURFACE PRESSURE WEIGHT CYLINDERS FORCE SIZES (mm) MACHINE
  MQ MAX-BAR KG t A B C D E F G H MAX-TON.
MPT 15 W 0,15 250 100 1 0.8 680 1170 1230 490 600 400 90 460 3-5
MPT 20 W 0,2 250 120 1 0.7 680 1390 1430 570 630 400 140 500 3-5
MPT 25 W 0,25 300 230 1 2.0 900 1680 1750 620 790 520 105 655 5-14
MPT 35 WL 0,35 300 300 1 1.7 1050 1900 2020 700 860 520 140 730 10-14
MPT 35 W 0,35 300 420 2 2.5 975 1900 2020 720 880 670 120 750 14-21
MPT 60 WS 0,6 300 700 2 3.7 1220 2250 2430 820 990 780 170 860 18-28
MPT 60 W 0,6 300 720 2 3.7 1220 2250 2430 820 990 860 170 860 18-28
MPT 70 W 0,7 300 750 2 3.3 1400 2540 2670 900 990 860 210 1020 23-30





For further information contact us at info@minellisrl.it, our specialized staff will take care of your request.
